Product Specification

Glass Specification

When it comes to sealed unit's, we use market leading products!

All Sealed Unit's supplied will have a minimum Central Pane U- Value of 1.2.

- Planitherm Total Plus Toughened

- Pilkington Active Clear Toughened

- Pilkington Active Neutral Toughened

- Pilkington Active Blue Toughened

- Warm Edge Spacer Bar

- All Unit's Will Be Argon Gas Filled

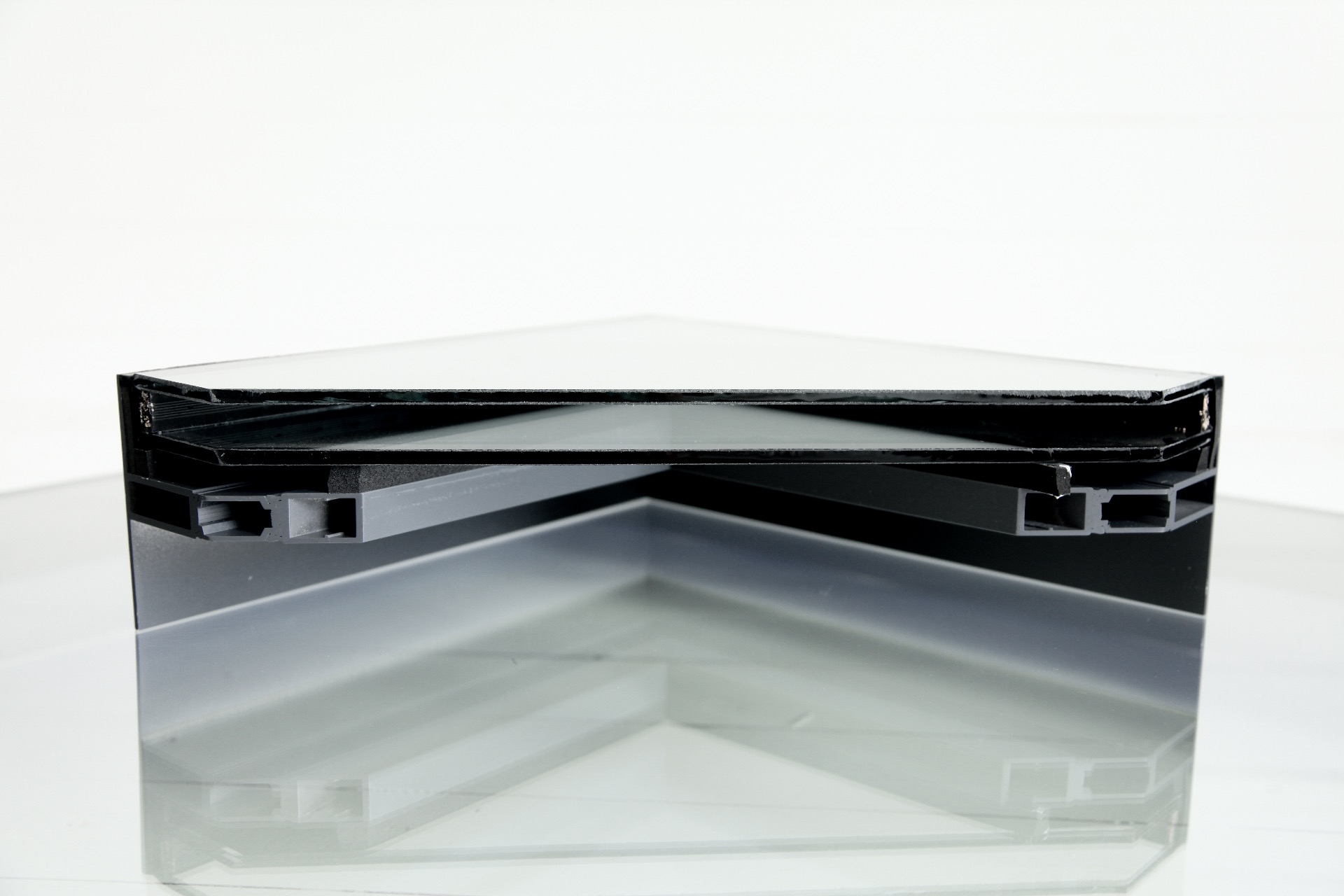

- The Thermally Broken Polyamide Frame Come in 3 different Colour Options -

Ral - 7015 / Ral - 7016 / Ral - 9005

Self Cleaning Glass How It Work's

The unique dual-action self-cleaning coating is located on the external pane of glass.

The coating has revolutionary photo-catalytic and hydrophilic properties, and works in two stages:

Stage 1 - The coating reacts with natural daylight to break down and loosen organic dirt.

Stage 2 - When it rains, instead of forming droplets, the water spreads evenly over the surface of the glass, helping to wash away any dirt and reduce streaking.

Planitherm Total Plus How It Works

Planitherm Total Plus use a special coating to reflect heat from domestic heat sources back into the room, rather than allowing it to escape through the windows. At the same time, this coating allows free heat and light from the sun to pass through the glass, warming the room and further contributing to the energy efficiency of the windows and helping to


Warm Edge Technology

Double glazed windows fitted with warm edge spacer have a warmer internal edge temperature by up to 65% which helps to improve the thermal efficiency of the window and reduce the risk of condensation, The heat saving can help to reduce the heat consumption or air conditioning requirements of a home which lowers carbon emissions and saves money on fuel bills, made from high performance plastic with a gas diffusion barrier to minimize gas loss from the edge of a glazing unit.




Standard Roof Light Size's

(Bespoke Size's Available)

Glass Roof Lanterns
Glass Roof Lanterns
  1. 1000 x 1500
  2.  1000 x 2000
  3.  1000 x 2500
  4.  1000 x 3000
Flat Glass Roof
Flat Glass Roof
  1. 1000 x 1000
  2. 1200 x 1200
  3. 1500 x 1500
  4. 1700 x 1700
  5. 2000 x 2000
  6. 1000 x 1500
  7. 1000 x 2000
  8. 1000 x 2500
  9. 1000 x 3000
Glass Roof Pyramid
Glass Roof Pyramid
  1. 1000 x 1000
  2. 1200 x 1200
  3. 1500 x 1500
  4. 1700 x 1700
  5. 2000 x 2000
